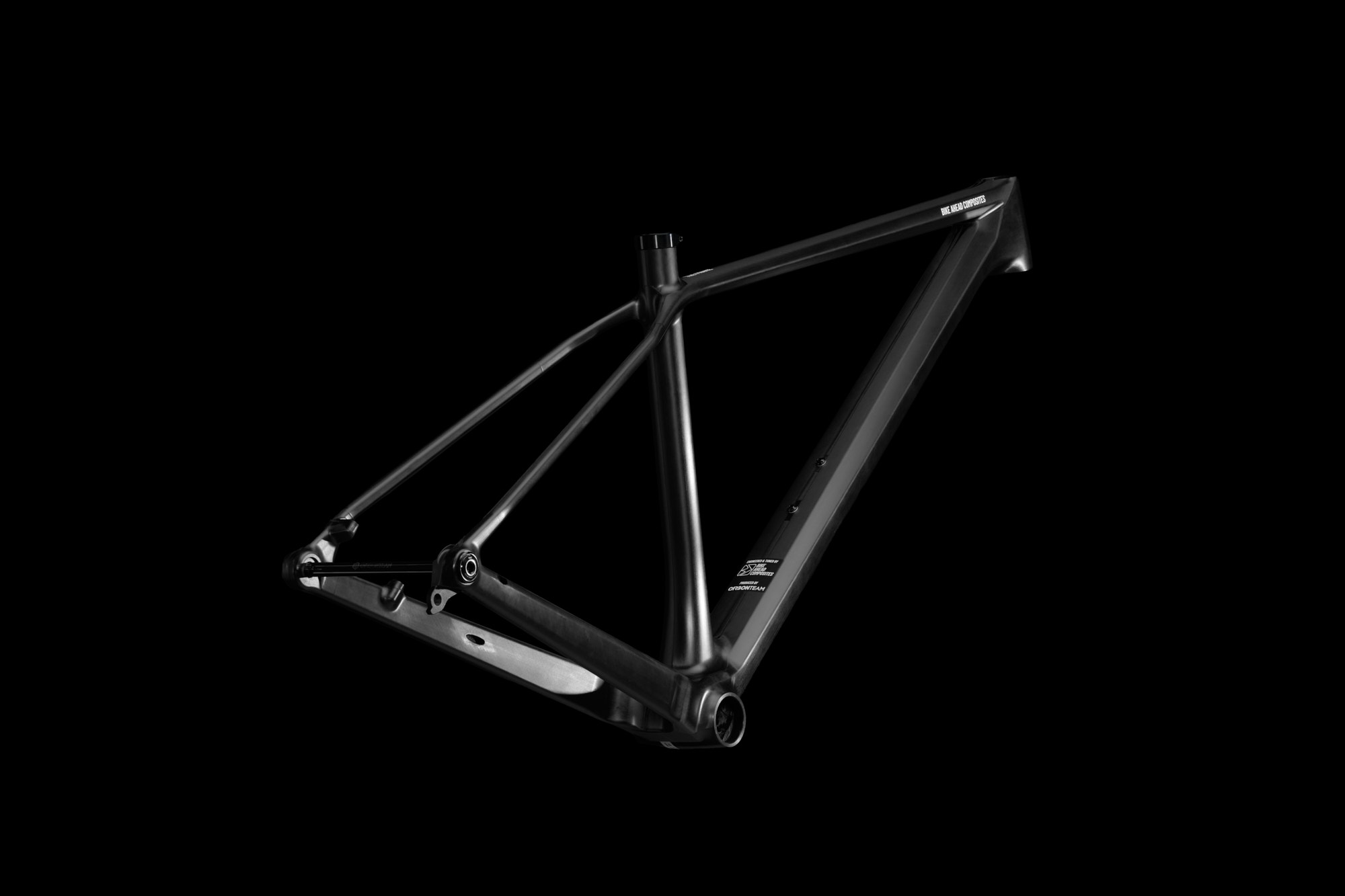

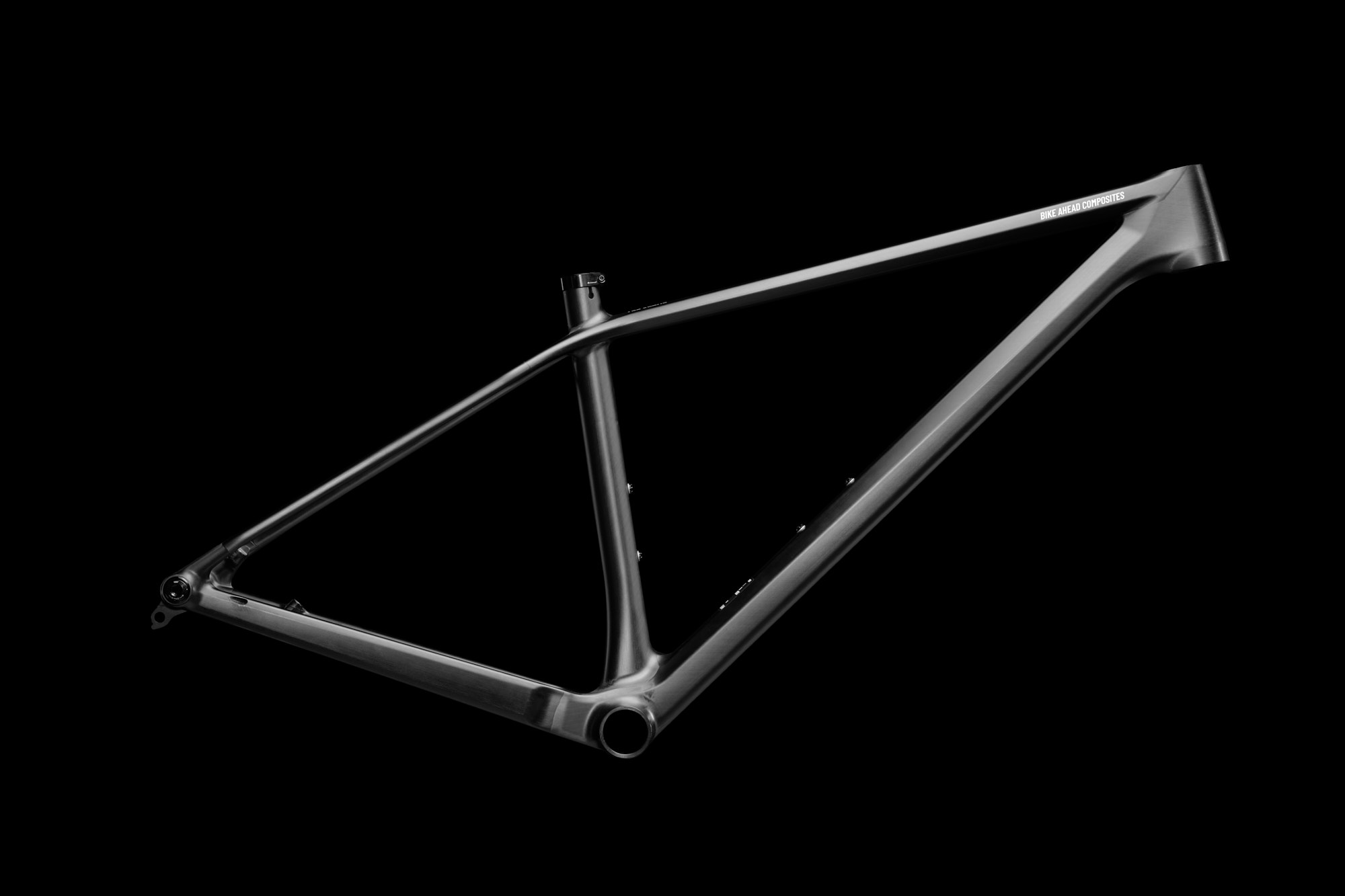

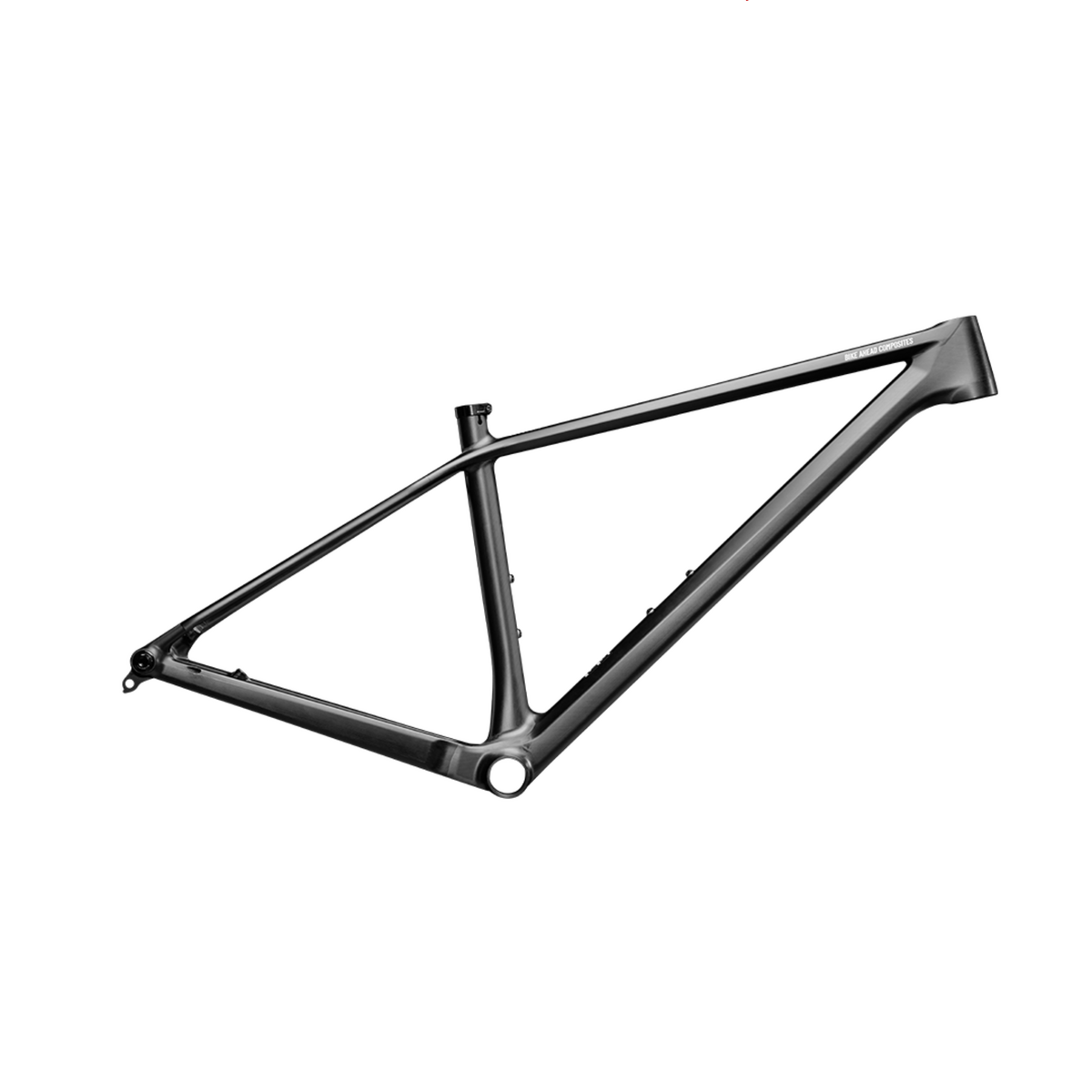

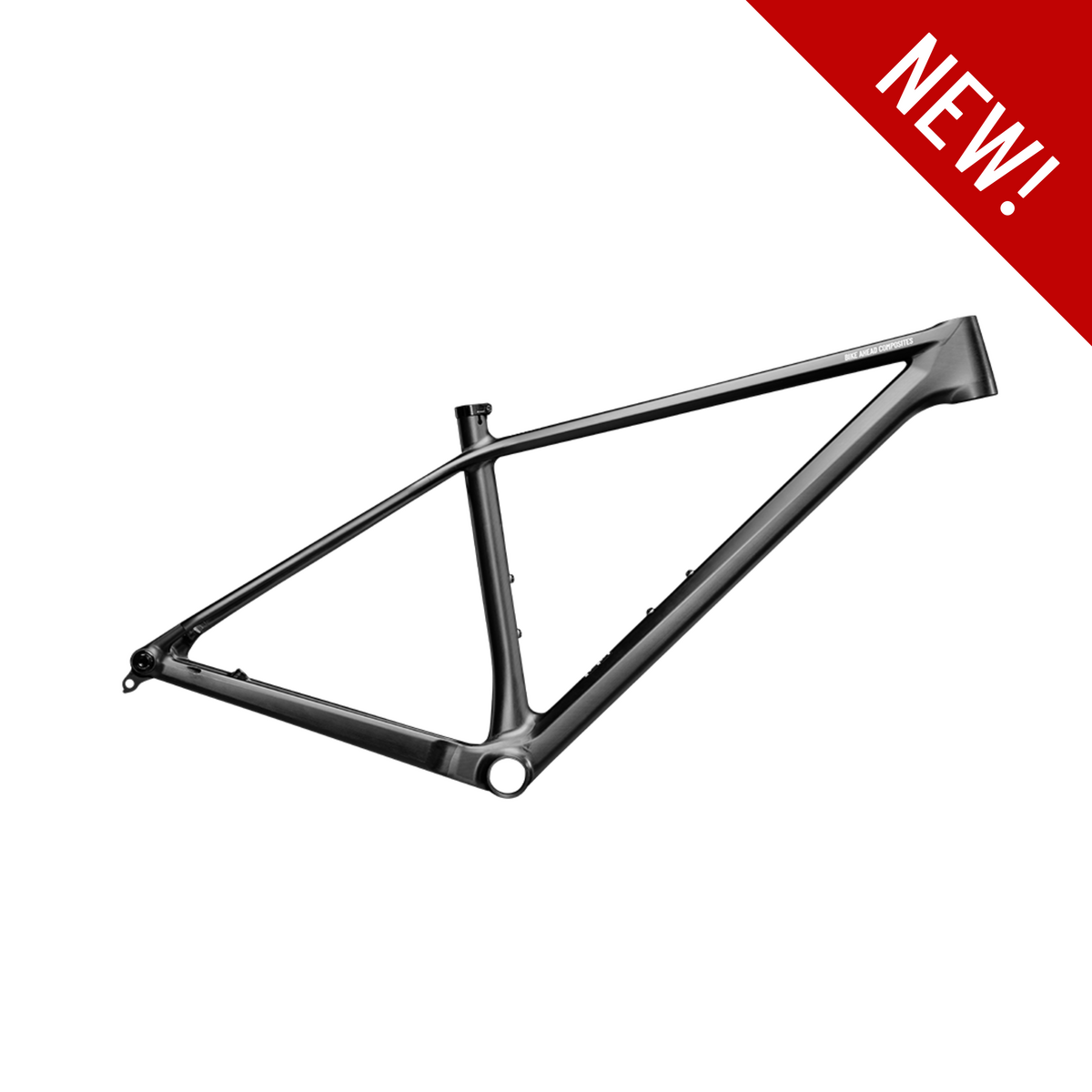

Developed for cross-country mountain bikes, THE FRAME is a pioneering hardtail frame! In cooperation with our partner CarbonTeam, we have created a product that you can trust unconditionally - stable, durable and precise. Produced in Portugal, the frame undergoes the final finish and a final quality control at our factory.

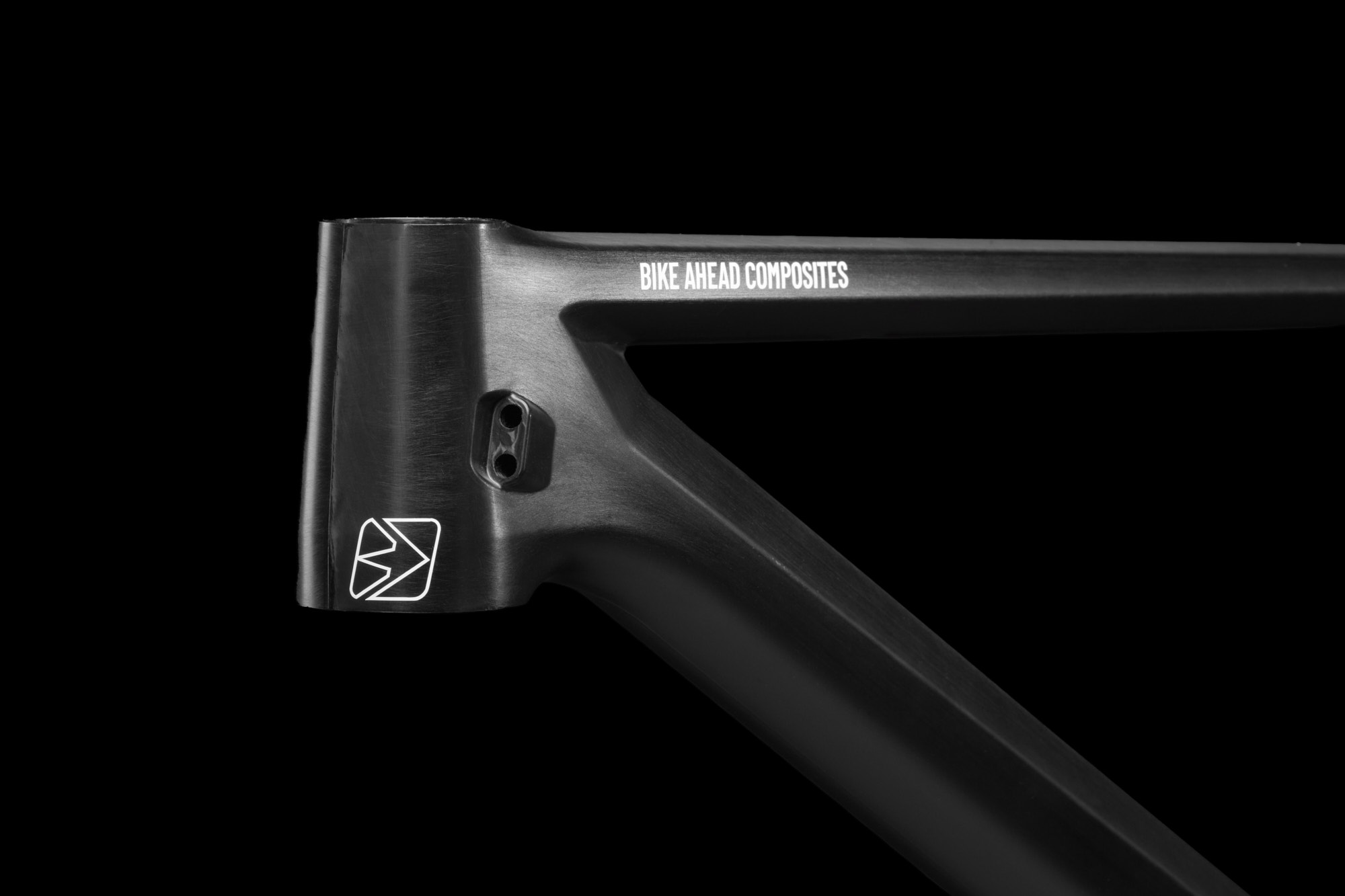

With the special layer structure gives and the advanced one-piece monocoque construction, it is the ideal balance between stiffness and weight. Special stiffness in the steering head and bottom bracket area enables precise steering impulses and direct power transmission. This enables fast and efficient riding without compromising on riding comfort.

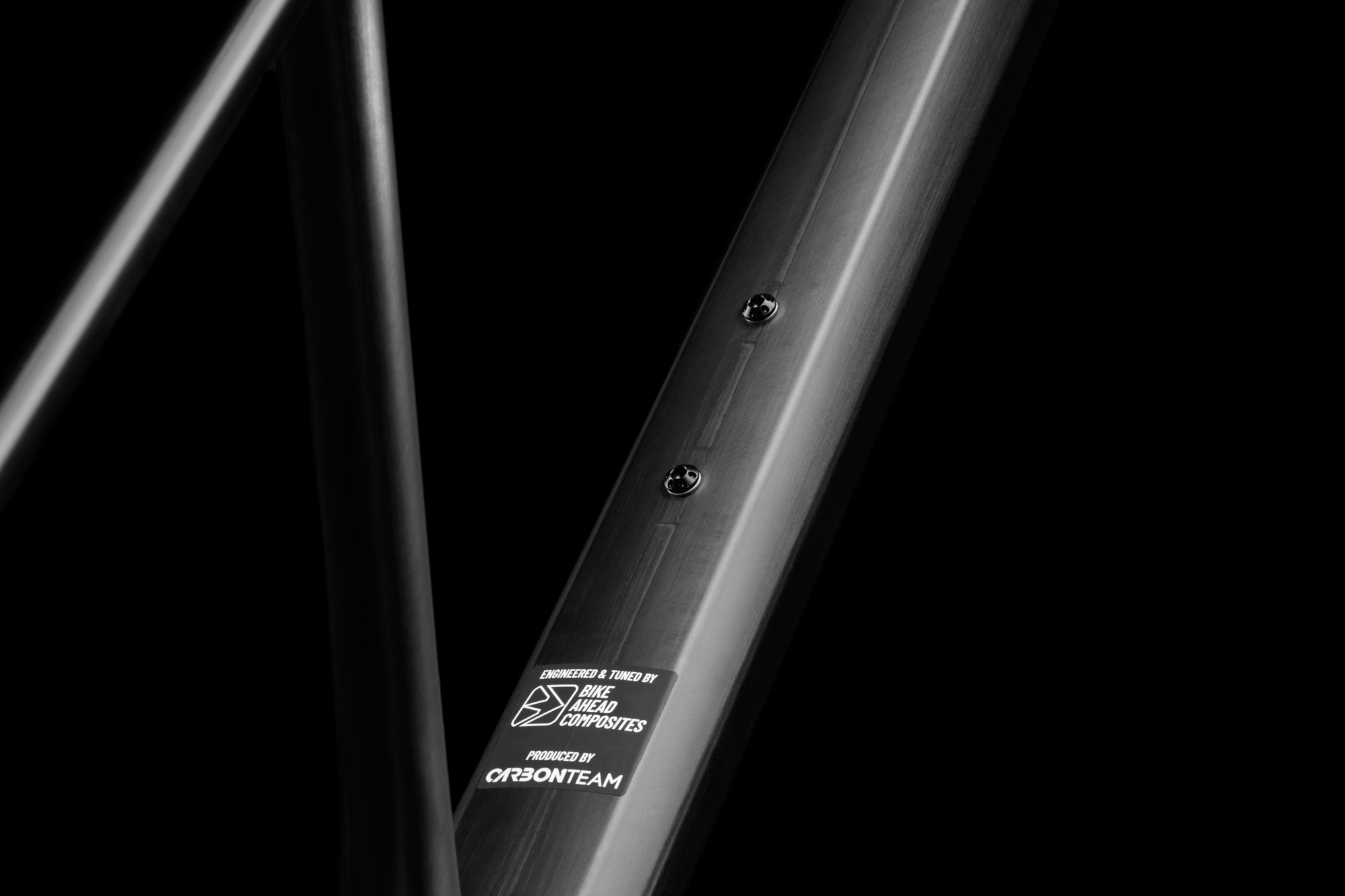

The clean design with integrated cable routing and artificial workmanship makes painting superfluous, and the fine, clean raw look stands out of it.
767 g
(849 g)
795 g
(877 g)
832 g
(914 g)
869 g
(951 g)
IS42 / IS52(Bike Ahead recommends Acros bearing IS42 top (26.02.605R2LS) and IS52 bottom (48.02.601R2S-1.5))
30.9 mm
100 mm
160 mm
200 mm
240 mm
280 mm
34.9 mm
INTEND BC "CORONA"
cut out to the front
13 mm
4 Nm
12 x 148 mm
SRAM UDH
M12 x 1 mm
CarbonTeam X-12 Aluminium
6 mm hexagon
12 x 176.5 mm
13 mm x M12 x 1 mm
15 Nm
Postmount 160 mm
180 mm
7 Nm
2.4" (60 mm)
BB92
41 mm
92 mm (91.5 mm)
36 teeth
1x down tube und 1x seat tube
Aluminium (milled head)
4 mm hexagon
M5 x 12 mm
head tube disc side
1x each chainstay
possible by using electronic shifting (loss of shift cable)
guided opening, inside unguided
